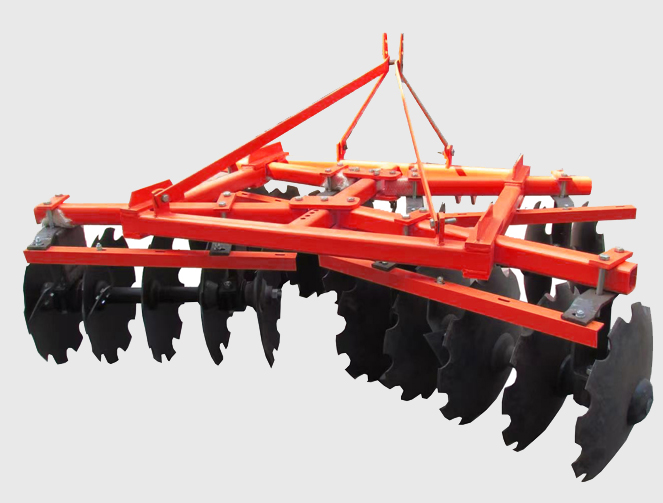

Medium-duty Lift Tandem Disc Harrow
| Mounted Medium Duty Tandem Disc Harrow Discs: 20/24/28/32 Disc Dia. : 22″ Working depth: 150-200 mm Square tube: 80x80x8 mm |
| The EBJDX lift tandem disc harrow is mainly applicable for breaking up the clods of farmland, light and medium soil after furrow and loosening soil and mixing soil and fertilizer before sowing. With a simple structure and strong ability to rake; it’s durable, easy to use and maintain, etc., meeting the requirements of intensive cultivation. |
Specifications:
| Model | Discs | Disc Dia. (mm) | Working Width(mm) | Working Depth(mm) | Weight(kg) | Tractor (hp) |
| EBJDX-2.2 | 20 | 22″ | 2200 | 150-200 | 2200 | 150-200 |
| EBJDX-2.6 | 24 | 22″ | 2600 | 150-200 | 2600 | 150-200 |
| EBJDX-3.0 | 28 | 22″ | 3000 | 150-200 | 3000 | 150-200 |
| EBJDX-3.4 | 32 | 22″ | 3400 | 150-200 | 3400 | 150-200 |
