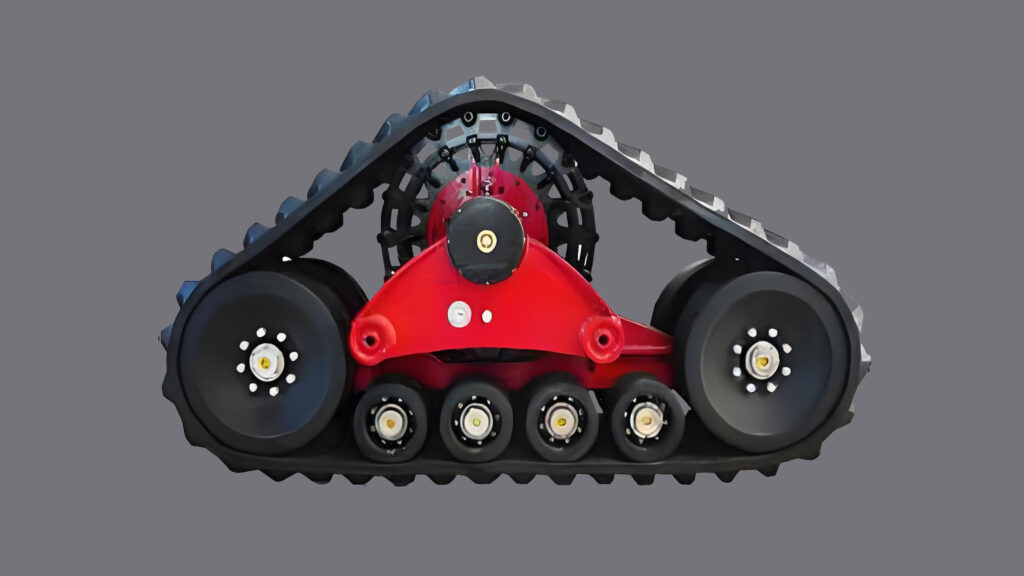

EKBL-635A Combine Harvester Track System

Download

Product Overview

The EKBL-635A track conversion system is designed for combine harvesters ranging from 137-197 HP. Featuring a robust hub-mounted design and hydraulic tensioning system, it delivers excellent traction and stability in rice paddies, marshlands, and soft agricultural soils.

Key Features

  • Suitable for 137-197 HP combine harvesters
  • Up to 35 km/h travel speed
  • 4-track roller configuration
  • Hydraulic tensioning system
  • Reduced soil compaction
  • Excellent flotation in wet fields
  • Easy hub-mounted installation

Technical Specifications

Model: EKBL-635A
Track Width: 635 mm
Ground Contact Length: 2100 mm
Ground Contact Area: 2.67㎡
Power Requirement: 102-147 kW

Compatible Brands

John Deere, Case IH, New Holland, CLAAS, Kubota, Yanmar, Lovol, Zoomlion.

Applications

Rice harvesting, wheat harvesting, soybean harvesting, wetland farming.
